TF Silo Leg Roll Forming Line

Equipment overview:

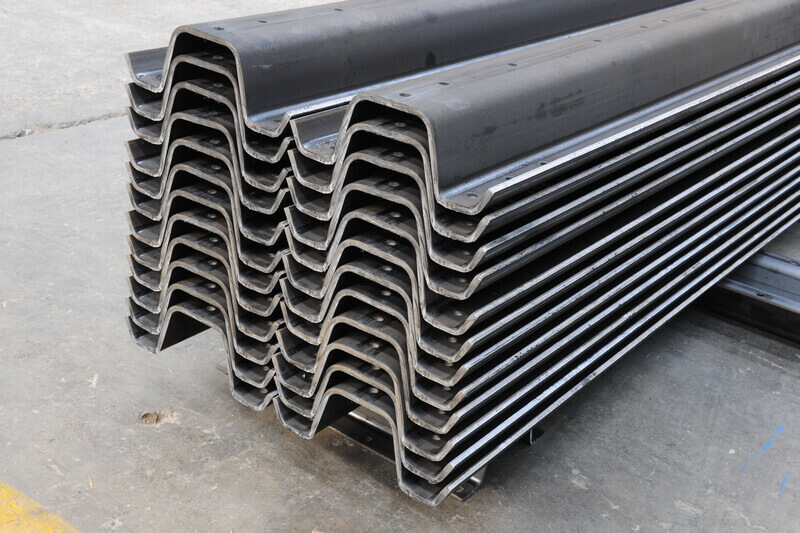

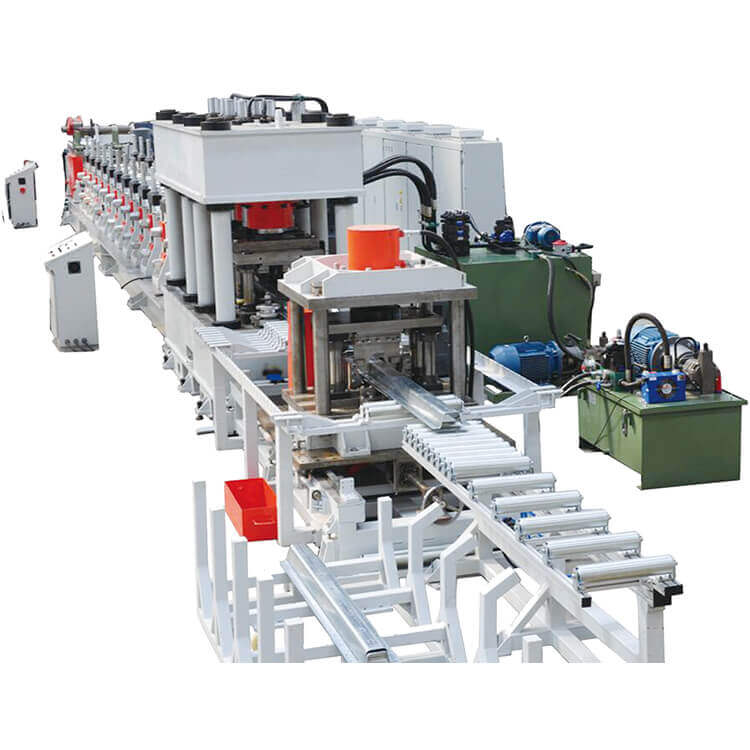

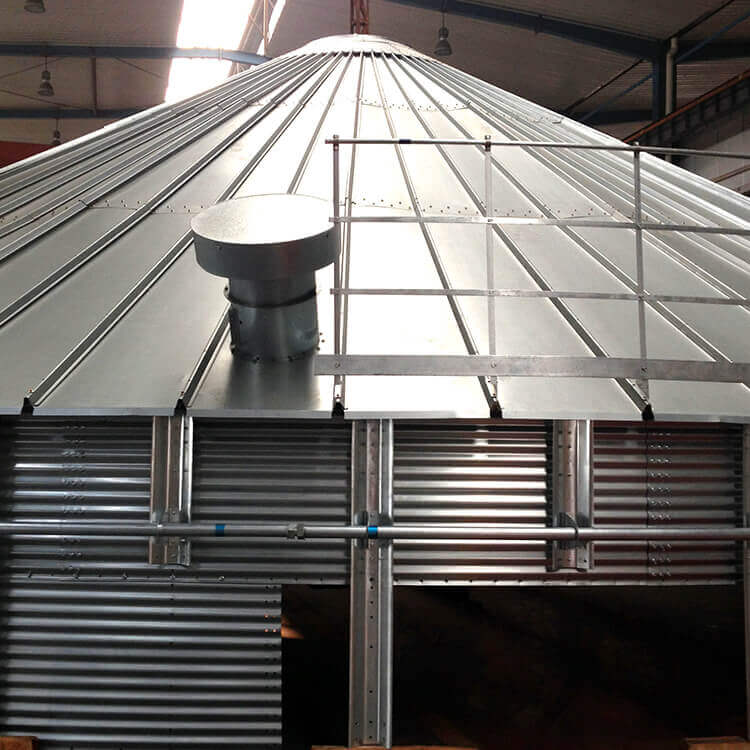

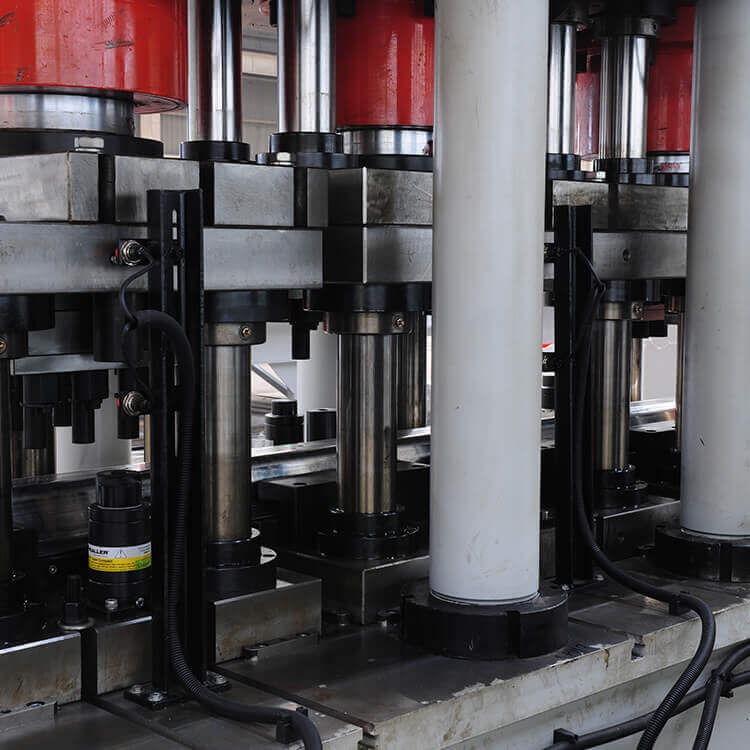

The roll forming machine consists of a raft frame, machine base, transmission system, and roll forming tools. The transmission system includes a motor, reducer, transmission frame. Using the individual transmission, the roll former can process the steel from 3.0mm to 8.0mm. The whole line adopts an integrated hydraulic punching press for different lengths and hole patterns. Using the operation system of the Tianfon brand, the hole position is up to ±1.0mm. It is very convenient for installation.

Components

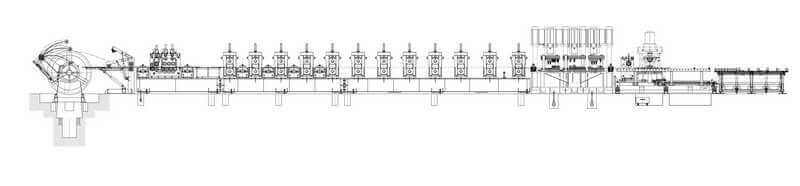

Uncoiling—leveling and feeding—-roll forming—punching—-cutting ––final producttf silo leg roll forming line4

tf silo leg roll forming line9

Specification

1、 The roll forming machine consists of raft frame , machine base, transmission system and roll forming tools. The transmission system includes motor, reducer, transmission frame. Motor and reducer drive it.
The machine base adopts welded structure and has quenching treatment.

tf silo leg roll forming line6

2. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.

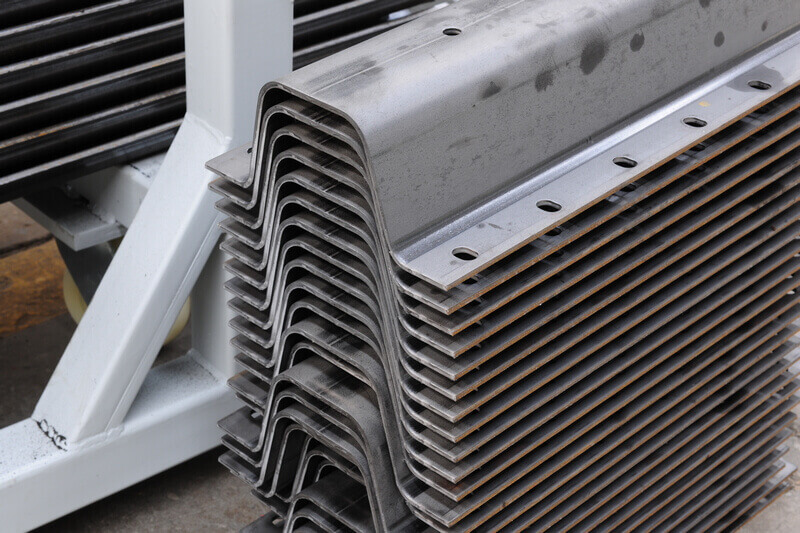

tf silo leg roll forming line7

3. The whole line adopts PLC control, touching PAD on the screen. And the low pressure units adopt the Schneider Company. There are two operation types (Manual and automatic),
Operation display is English version.

tf silo leg roll forming line8The connecting way is quick plug one.
The control power is 24V.
The operating ways: manual and automatic operation.
All the parameters of the product can be set via the touching PAD, such as the length of single product, the total pieces of the product etc.

tf silo leg roll forming line5

Technical parameters:

Num. Item Unit Parameters Remark
1 Suitable material Type hot rolled galvanized steel coil,Q235B ,Q345B,SGH440
strength MPa 345
Thickness mm 3–5
Coil internal diameter mm 508,610
Coil weight T 5
2 Specification mm 380
3 Line speed m/min 10
4 Roller material D2 quenching treatment
5 Roller driven type External chain  transmission
6 Operating system Windows2000
7 Total motor power Kw About 300
8 Electric control system PLC automatic control system
9  Dimension(L*W*H) m 30X2X1.7
