TF Silo Plate Roll Forming Line

Equipment overview:

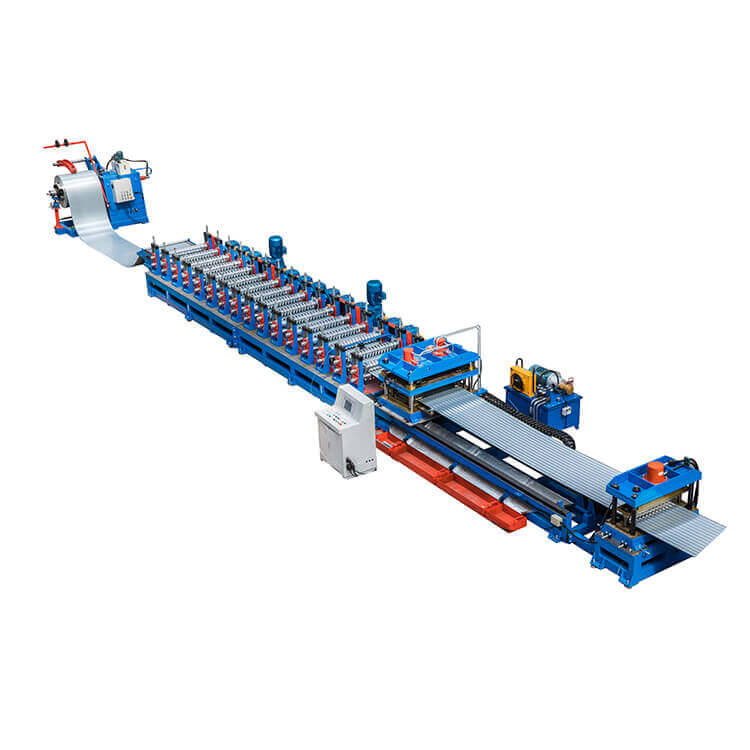

TF1.2-27/90 silo roofing roll forming line has many advantages on widely used, reliable structure, good tensile strength and convenient operating .The production line is possible to produce silo roofs with various width, length and shapes according to the drawings.

Components

Uncoiling–leveling—edge trimming–slitting–notching–guillotine–punching–profile exchanging–second forming–punching–edge bending– stacking automatically

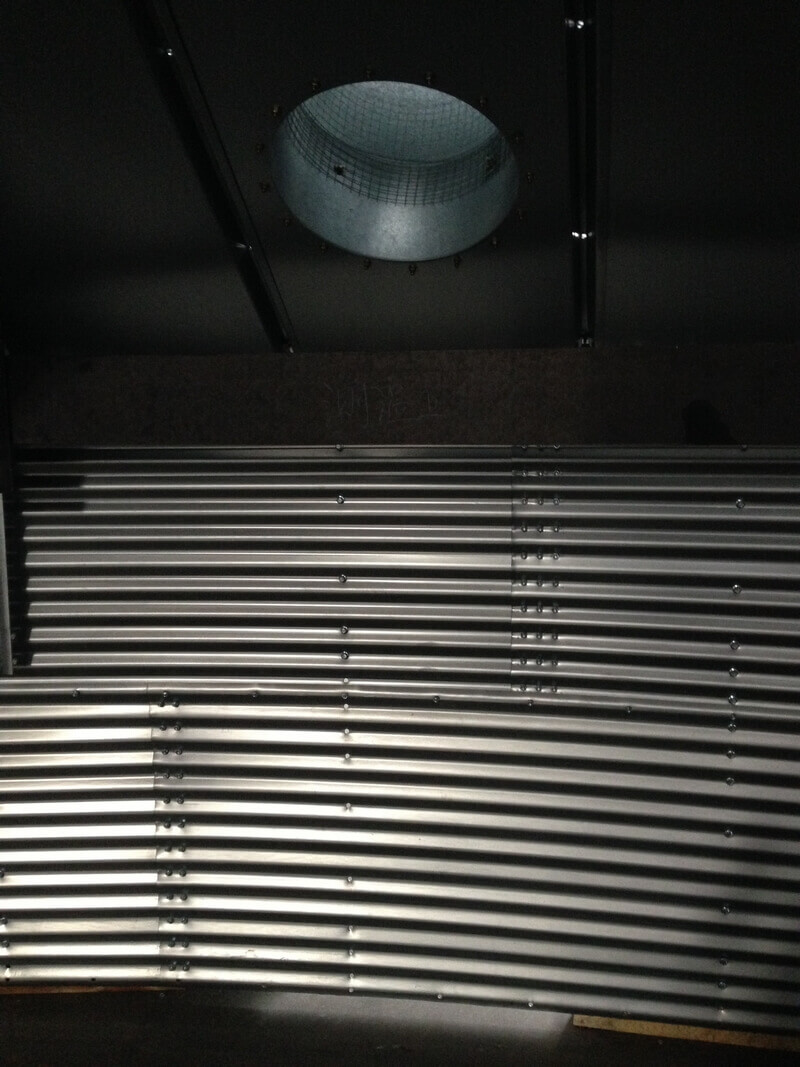

tf silo plate roll forming line4

Specification

1. TF1.2-27/90 silo roofing production line has many advantages on widely used, reliable structure, good tensile strength, and convenient operating.
The production line is possible to produce silo roofs with various widths, lengths and shapes according to change slitting angle, notching molds, and edge bending blocks to change profiles, also just change partial punching molds to produce various profiles.
2. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming are small. The sheet is easy to feed. All these assure the accuracy and stability of the roll forming.

Technical parameters:

Name Quantity Power Note
Coil car 1 set 2.2KW
Hydraulic De-coiler 7.5KW/5.5KW 15t, double head
Leveling Device 11KW Independent motor, nine rolls
Forming machine for corrugate
Shear with angles Cut off the sheet with an angle 1.5°-13°at end
Diagonally cutting 1 set 1.5rw Split the sheet into two pieces. One piece go on to the roll forming, the other to the stacker manually
P Material box for transfer 2 set Tianfeng provide the drawings only. Made by customer
G Supporter rack 2 sets
End cutting and notching

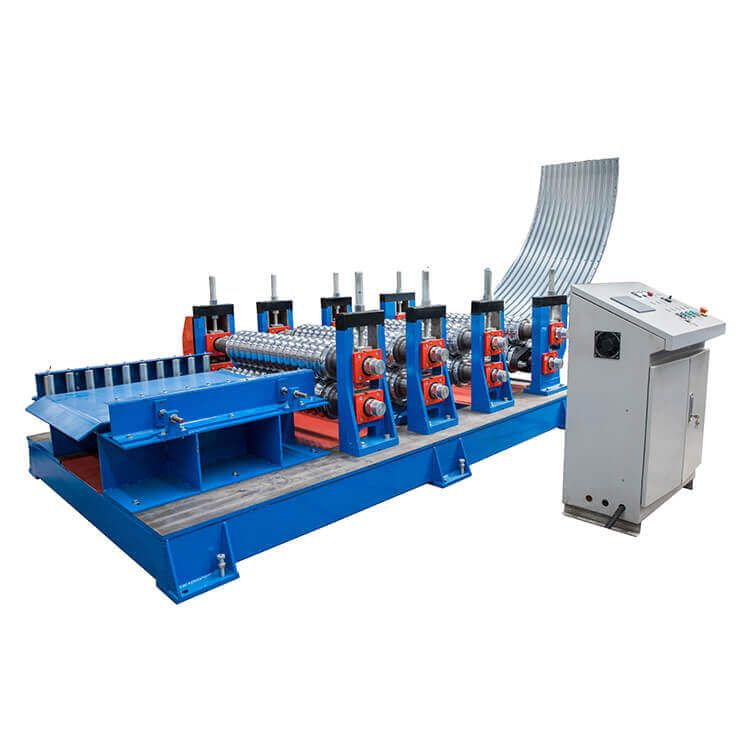

Roll forming machine 2 sets 14 stations.  For two ribs
Group punching device 2 sets Punch the installation hoes on the two ribs
press for eaves 1set
Platform for transfer Transfer the semi-product between two roll formers
