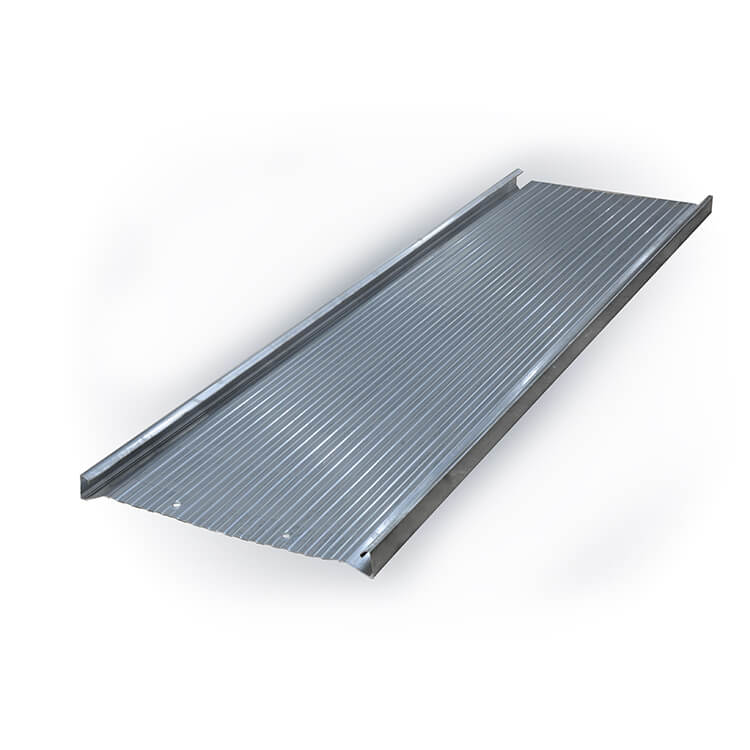

TF595 Anode Collecting Plate Roll Forming Line

Product Introduction

This line is placed with decoiler, servo feeder, lubrication device, notching device, puncher, guider, roll former, hydraulic shape cutter, discharging craft, hydraulic station, and electric control system. It has the character of reasonable structure, convenient operation, reliable and short production process, and products with wide use.

It is used to support the expansion of steel coil and coil. It adopts the non-dynamic double support structure, and the connecting rod drives the connecting rod to tighten the inner wall of the material coil. The structure is simple and the operation is convenient.
The guiding device is mainly composed of a horizontal idler and a guiding vertical wheel. The guide wheel can be easily adjusted to adapt to the sheet width.tf595 anode collecting plate roll forming line5tf595 anode collecting plate roll forming line6

The lubricating oil in the oil storage tank is evenly coated on the plate by means of roller oiling, which plays the role of rust prevention and lubrication.
Two sets of C-shaped punching devices are used to punch out the notches on both sides, and the position of the notches is detected when cutting.

tf595 anode collecting plate roll forming line3

Function and structure:

Hydraulic drive, cutting length can be set, after reaching the length, the length measuring device sends a signal, and the hydraulic cylinder drives the punching die to cut the fixed-length profile and punch out the required hole.
PLC controls the operation of the whole line, automatic length measurement, fixed-length cutting, with automatic speed regulation function, man-machine interface, touch screen control, length can be set freely on the touch screen, the operation is simple and easy to understand. The peripheral connection of the control line adopts an aviation socket or quick plug, which is convenient for disassembly and high reliability.

tf595 anode collecting plate roll forming line4

Technical parameters:

Num. Item Unit Parameters Remark
1 Suitable material Type SPCC
strength MPa ≤350
Thickness mm 1.2~1.5
Coil internal diameter mm 500,600
Coil weight T 5
2 Specification mm 100-320
3 Line speed m/min 10
4 Roller material D2 quenching treatment
5 Roller driven type External chain transmission
6 Operating system Windows2000
7 Total motor power Kw About 15
8 Electric control system PLC automatic control system
9 Dimension(L*W*H) m
