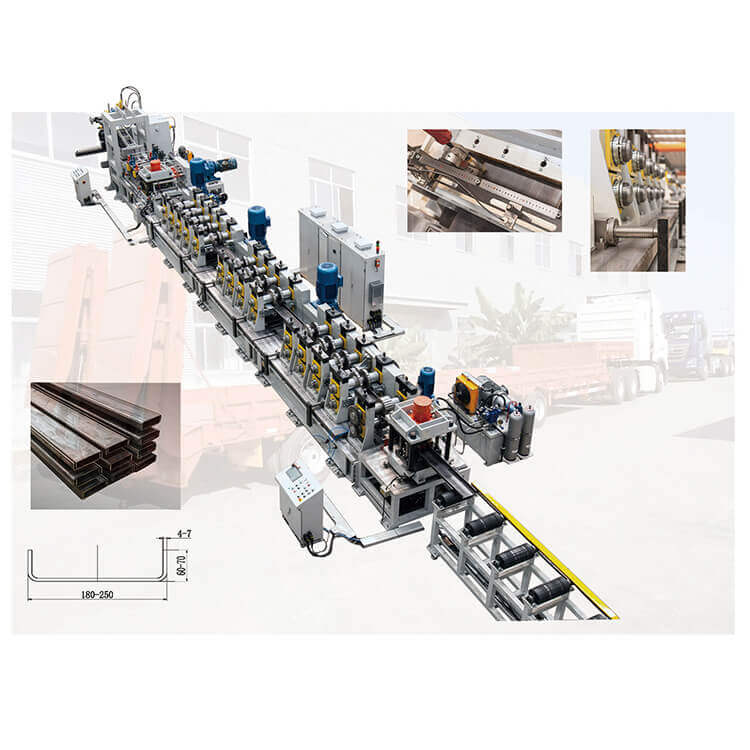

TF automobile beam roll forming line is a high-automation production line that integrates uncoiling, spader, leveling, butt welding, roll forming, straightening, cutting and auto stacking, etc. The line can produce four kinds of profiles. It can change profiles by servo motor automatically. The produced profiles are with good compression and bending resistance properties.

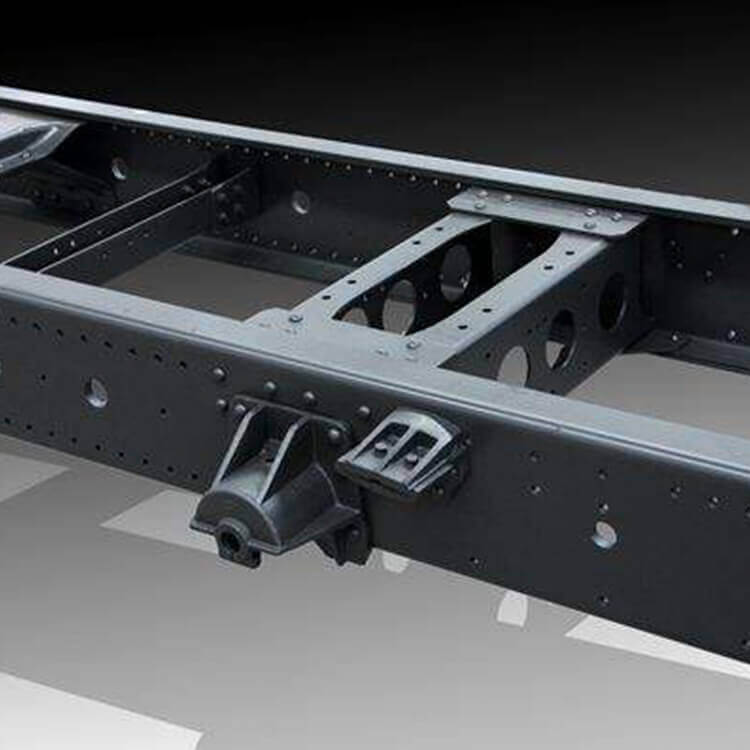

TFU400-7X truck beam roll forming line was delivered on Sep.26,2018,as a high automation production line which integrates uncoiling, spader, leveling, shear butt welding, roll forming, straightening, cutting and stacking etc. The line can produce four kinds of profiles, and can change profiles quickly by adjusting position of guide wheel, servo width, roller clearance and changing cutter. The profile produced by this production is a new structural material, and has good mechanical properties, such as compression and bending resistance, so it can be widely used in vehicle frames and civil buildings.

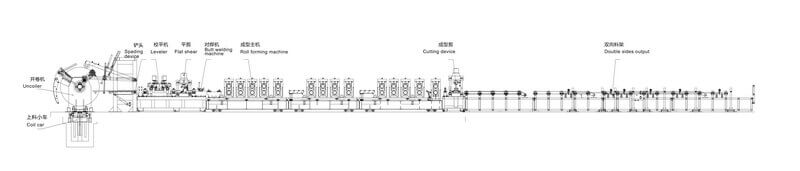

DECOILING→ COIL HEAD STRAIGTHTEN→LEVELING→BUTT&WELDING→GUIDING →ADJUSTABLE ROLL FORMING→POST CUTTING →DISCHARGING

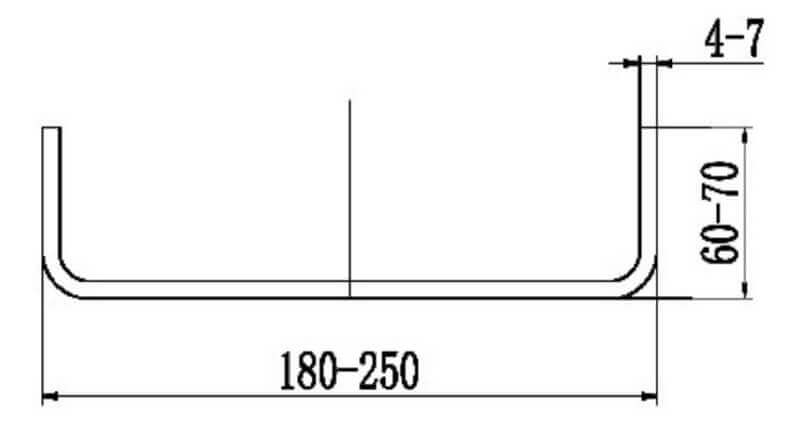

TF automobile beam roll forming line can roll the 4mm, 5mm, 7mm thickness steel, produce speed reach 10m/min. Roll formed automobile beam with best straightness and cross section size.

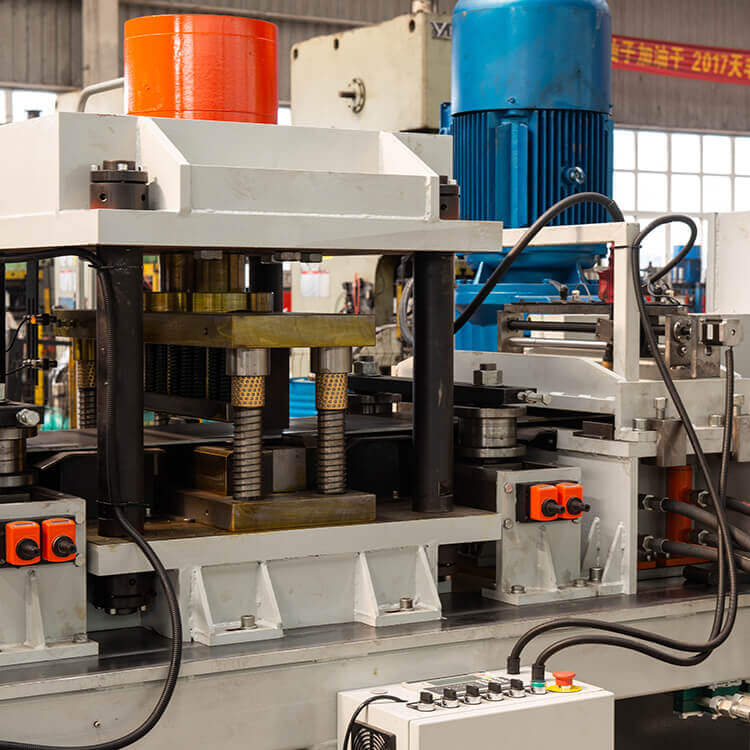

The forming machine is transmitted by motor, the gear and bevel gear drives, rolling shaft of each side of machine is transmitting separately.
Machine adopts Cantilever arch structure. After stress relieving, processing, it can assure the long time usage and without dimension deformation. The space between upper rollers and lower rollers is adjustable.

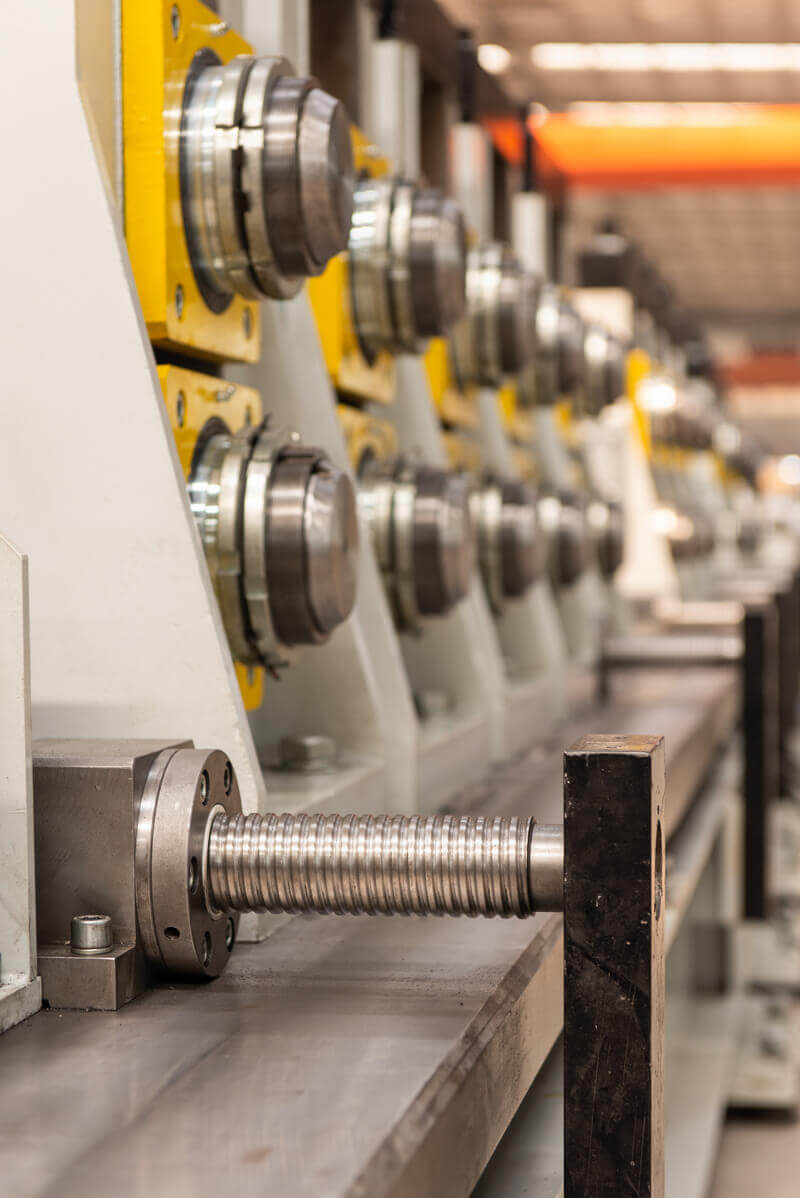

The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The roller material adopts bearing steel, through quenching and processed by the high precise CNC lathe; the roller surface is chromed and has the mirror face treatment to reached long time using. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.
The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check.
| Num. | Item | Unit | Parameters | Remark | |
| 1 | Coil parameters | Type | Hot roller steel | S700MC | |
| Strength | MPa | 800 | |||
| Thickness | mm | 4–7 | |||
| Inner diameter of coil | mm | 508,610 | |||
| Weight | T | 10 | |||
| 2 | Width | mm | 100~320 | ||
| 3 | Line speed | m/min | 10 | ||
| 4 | Material of roller | Gr25 | |||
| 5 | Drive of roller | Grearbox transmission | |||
| 6 | Operate system | Tianfon TFAI in line punching cold roll forming control system V1.0 | |||
| 7 | Total power | Kw | 300 | ||
| 8 | PLC system | PLC auto control system | |||
| 9 | Size (L*W*H) | m | |||
TFU400-7X truck beam roll forming line was delivered on Sep.26,2018,as a high automation production line which integrates uncoiling, spader, leveling, shear butt welding, roll forming, straightening, cutting and stacking etc. The line can produce four kinds of profiles, and can change profiles quickly by adjusting position of guide wheel, servo width, roller clearance and changing cutter. The profile produced by this production is a new structural material, and has good mechanical properties, such as compression and bending resistance, so it can be widely used in vehicle frames and civil buildings.
