The Busbar Section Roll Forming Line

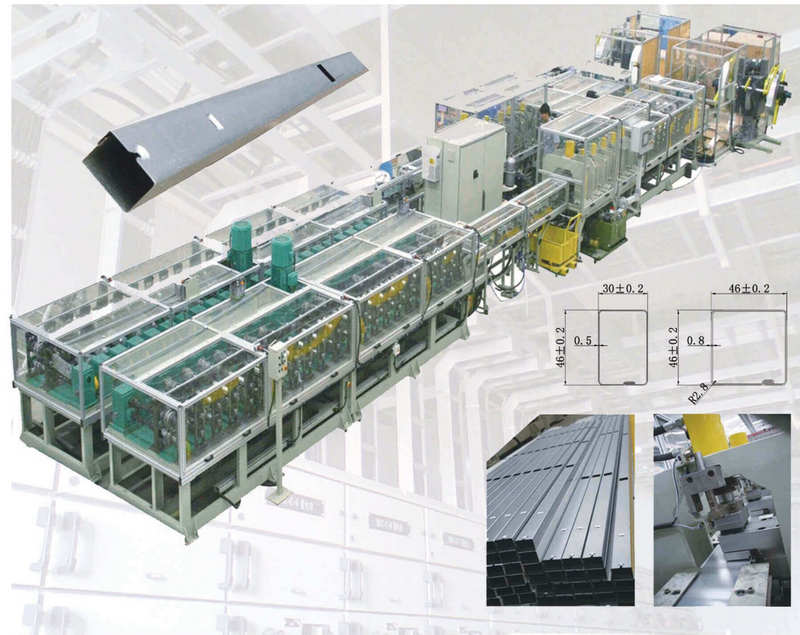

Equipment overview:

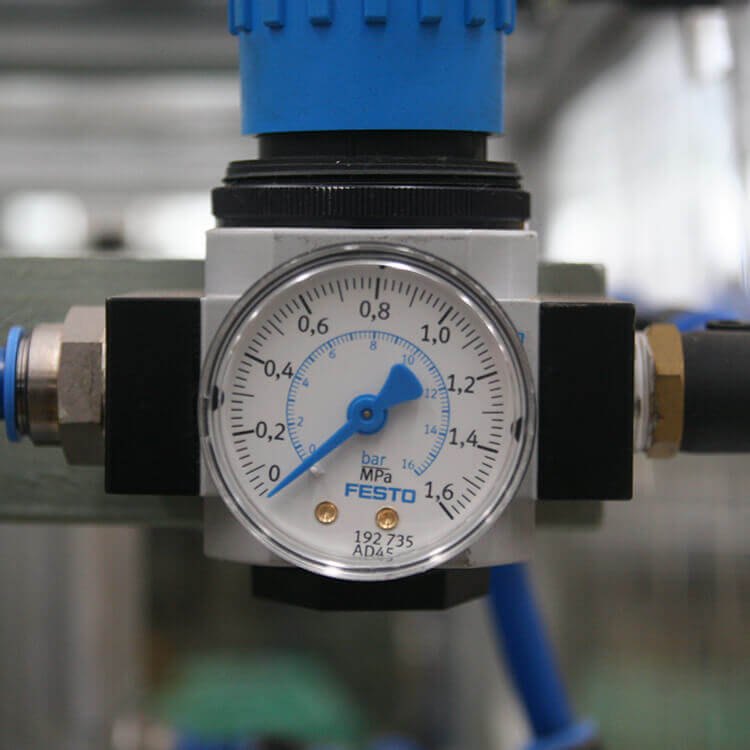

The fully automatic production line can make the auto servo adjustment of notching, forming, and cutting on the touch screen. More than 1000 specs of profiles can be produced by choosing the data in the program, without any mechanical adjustment. The whole line is with the protection function of short-circuit, over-load, over-voltage, over-current, phase failure, etc. There are detectors of temperature, hydraulic pressure, air pressure, lubrication, running position of the profile, motor speed, and security protection at each position. When there appears a fault, the error location and handling method will be shown automatically.

Features

The production line has four excellent characteristics
Perfect function
Stable performance
Cheap operation
Safe and reliablethe busbar section roll forming line6

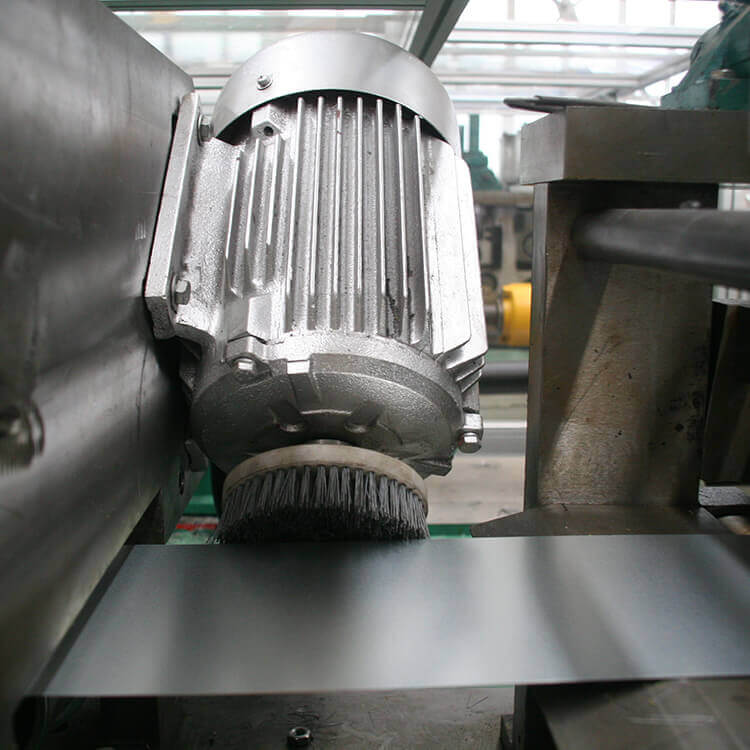

Components

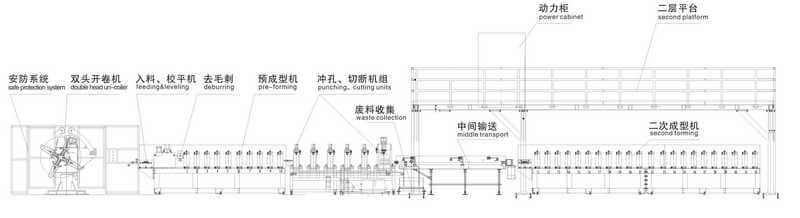

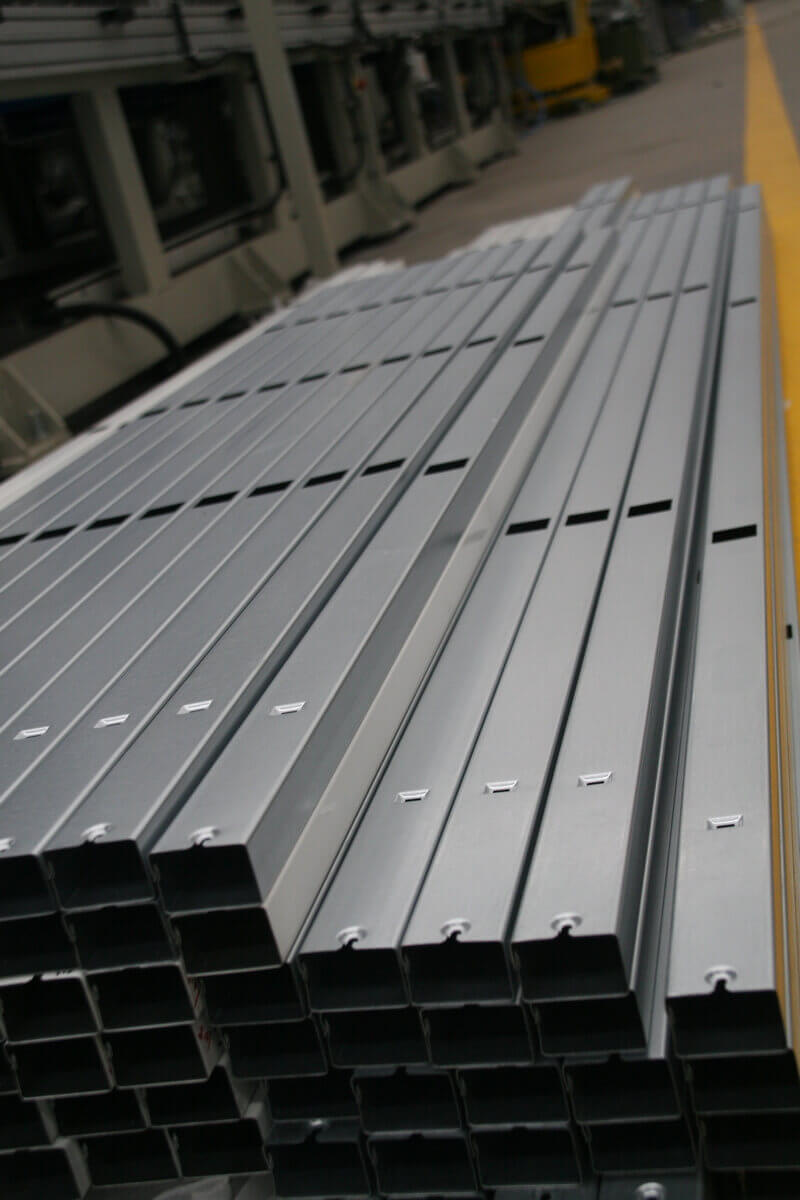

Coil loading→ Data set →Machine start→ uncoiling → leveling →pre-roll forming→ selective punching →cutting →convey →roll forming to bite seaming product→ Products discharging.

the busbar section roll forming line5

the busbar section roll forming line4

Specification

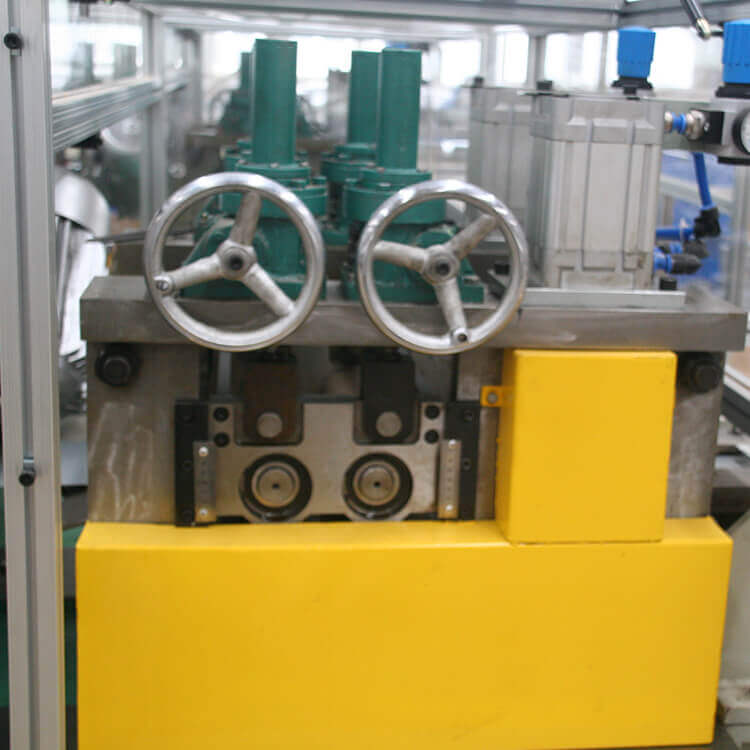

1. The rollers’ support is a whole one, all the dimensions are processed by the machining center. The distance (space) between top & bottom rollers is adjusted by an eccentric sleeve on the top roller shaft. The locking device ensures the stability of the machine. All the bearings on the top & bottom shafts are lubricated.
2. Module tori is installed on NMT, adjust the distance through the rotation leader screw.

Technical parameters:

num. Item Unit Parameters Remark
1 Suitable material Type galvanized coil
strength MPa ≤235MPa
Thickness mm 0.5mm
Coil internal diameter mm 500mm
Coil weight T 3
2 Specification mm 165
3 Line speed m/min 35
4 Roller material D2 quenching treatment
5 Roller driven type External chain transmission
6 Operating system Windows2000
7 Total motor power Kw About11
8 Electric control system PLC automatic control system
9 Dimension(L*W*H) m
